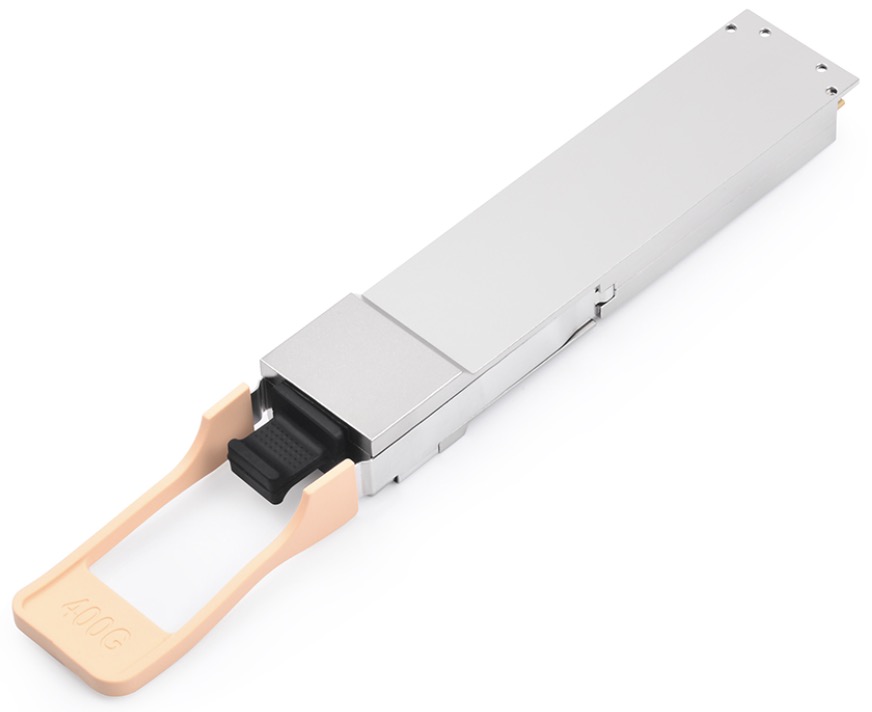

400g optical transceivers play a vital role in the process of constructing a 400G network system. It is used for photoelectric conversion with a transmission rate of 400Gbps. The electrical port side employs 8 channels of 53Gbps PAM4 electrical signals, packaged in OSFP or QSFP-DD formats. Optical wavelength categorizes 400G optical transceivers into multi-mode (MM) and single-mode (SM), transmission distance classifies them as SR, DR, FR, and LR, and modulation methods usually PAM4.
| P/N | Data Rate | Wavelength | Distance | Source | Tx Power(dBm) | Rx Sensitivity(dBm) | Connector | Temp. Range | Datasheet |
|---|---|---|---|---|---|---|---|---|---|
| OP-QSFP-DD-SR8 | 400G | 850nm | 100m | VCSEL+PIN | -6.5 ~4 | ≤-7.9 | MPO-16 | Commercial |  |
| OP-QSFP-DD-SR4 | 400G | 850nm | 100m | VCSEL+PIN | -6.5 ~4 | ≤-8.4 | MPO-12 | Commercial | |
| OP-QSFP-DD-DR4 | 400G | 1310nm | 500m | PAM4+PIN | -2.9 ~4 | ≤-5.9 | MPO-12 | Commercial | |
| OP-QSFP-DD-FR4 | 400G | 1271,1291,1311,1331nm | 2km | CWDM EML+PIN | -3.2 ~4.4 | ≤-7.2 | LC | Commercial | |
| OP-QSFP-DD-LR4 | 400G | 1271,1291,1311,1331nm | 10km | CWDM EML+PIN | -2.7 ~5.1 | ≤-9 | LC | Commercial | |
